Location：Home > Products > ICET® Sound Barrier
ICET ® Eva Sound Barrier
1. Product Overview:
The sound barrier is made from a composite material based on EPDM/ethylene polymer with a special flame retardant mineral blend.

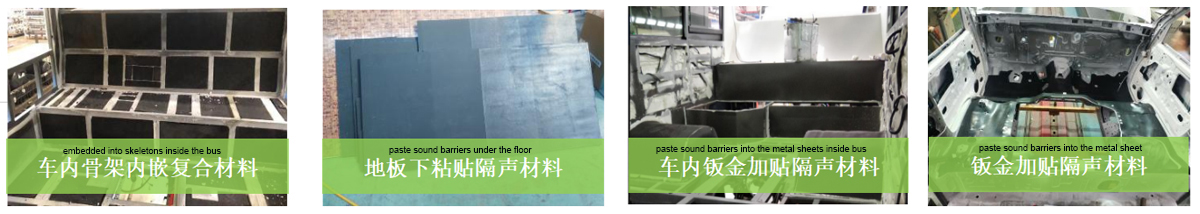

Application: Underfloor shock absorption/Underfloor sound insulation/Wheel housing sound insulation/Body sheet metal sound insulation/Shock absorber pad/Rear and side cabin door composite material/Engine compartment composite material.
2. Parameters
|
Technical specs |
|
| Flame retardant properties |
▶ comply with FMVSS 302,DIN 75 200 ▶ JT/T 1095-2016ISO 3795，burning rate＜100mm/min ▶ ECE R-118 ，Meet Appendix 6, 7, and 8 flame propagation speed: 0mm/min |
| Temperature resistance | Placing steel plate surface: -50 ℃ -+100 ℃, short-term reaching+120 ℃ |
|
Weight |
4-6kg/m2 |
| Hardness / ISO 868 |
70±5 Shore A
|
|
Dimension |
||
| product | size/thickness（mm） | package |
| ICET ® Eva Sound Barrier | 1250 * 2100 * 1.2 | Sheet/roll material |
|
ICET ® Eva Sound Barrier |
1250 * 2100 * 2.0 |
Sheet/roll material |
|
ICET ® Eva Sound Barrier |
1250 * 2100 * 3.0 |
Sheet/roll material |
3. Product Description
| Advantages |
• Excellent sound insulation performance • Better fire and flame retardant performance • Compared to asphalt layers, it has better heat resistance • Compared to the asphalt layer, there is no odor produced when heated • Good flexibility, no pressure sensitivity, no particles or smudges • Self-adhesive backing and non adhesive types for selection • The special composition of EVA makes it very suitable for double-sided adhesive bonding, such as acrylic adhesive • When the materials are applied to vertical surfaces or tops, it is recommended to add mechanical fixation |
|||
