1. Product Overview:
S1000 porcelain composite material is a sound insulation material that combines softness and outstanding fire resistance, meeting the application requirements of harsh environments and being environmentally friendly.
This product has good sound insulation performance, electrical insulation, flame retardancy, high and low temperature resistance, and aging resistance. It is halogen-free, environmentally friendly, and odorless.
When encountering open fire, the smoke is extremely small and it is vitrified. It will not melt or drip at 1200℃, thus playing a protective role in isolating flames and preventing fire.
Applications: aerospace, rail transit, buses, heavy-duty trucks, engineering machinery, special equipment, air conditioning units, medical equipment, air duct networks, experimental equipment, etc.
2. Parameters
|
Technical data |
|
| Flame retardant properties |
▶ JT/T 1095-2016GB 8410-2006,A-level flame retardant ▶ GB38262-2019, Oxygen index>3.2, vertical combustion V0, smoke density ≤ 30 ▶ EN45545-2, R1 HL3 ▶ ECE R-118, annexes 6, 7 and 8 fulfilled ▶ Extreme working condition: 1000 ℃ flame burning, no burning through for 30 minutes ▶ UL94-2013, V0 ▶ GB 38262-2019 |
| Temperature resistance | Long term -50 ℃ to+200 ℃; Short term high temperature resistance can reach+300 ℃; Extreme working condition: 1000 ℃ flame does not burn through in half an hour |
|
Thermal conductivity GB/T 10295-2008 |
-Standard GB/T 10295-2008， 0.55W/(m.K) |
| Density GB/T 533-2008 |
1mm thickness，The surface density is1.6kg/㎡
|
|
Density GB/T 533-2008 |
Shore A：65 ± 5 |
|
Environmental testing |
RoHS compliant; TB3139-2021 compliant |
|
Elongation at break GB/T 528-2009 |
≥100 |
|
Tensile strength GB/T 528-2009 |
≥3.5 MPa |
| Specification and size | |||
| product | thickness（mm） | tolerance（mm） | size（mm） |
|
S1000 Ceramic composite materials |
0.5mm、1mm、1.5mm Other sizes can be customized |
±2% |
Width 500mm × 30m/roll Width 960mm × 10m/roll |
3. Product Description

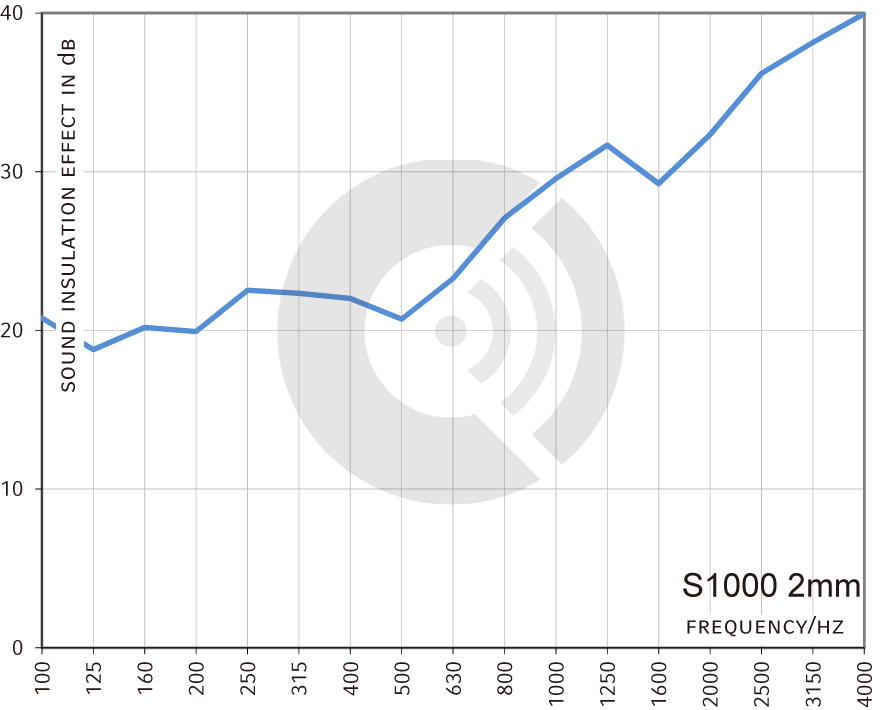

0.5mm thickness sound insulation: 9.5dB (A)
1.0mm thickness sound insulation: 14dB (A)
1.5mm thickness sound insulation: 20dB (A)
2.0mm thickness sound insulation: 25dB (A)
| Characteristic |
• Better sound insulation performance • Meet various fire prevention standards requirements •Outstanding electrical insulation properties, suitable for electrical enclosures •Corrosion and acid alkali resistance, suitable for complex working conditions • Aging resistant and UV resistant, suitable for outdoor working conditions |
|||
|
Select |
• available for backing adhesives on any side, easy to be sticked and used • It can also be made into rolled tape for fire protection treatment of wiring harnesses and other pipelines. |
|||
| Recommendation |
Store at room temperature in a dry indoor environment, products with adhesive backing should be stored for no more than 12 months. |
|||
