1. Product Overview:
• Fiber based materials, corrosion-resistant and heat-insulating fiberglass material, environmentally friendly and flame-retardant backing adhesive
• Good thermal insulation performance for heat preservation and cold insulation
• Good sound absorption, noise reduction, and insulation performance
• The material has a long service life and is recyclable, environmentally friendly, and pollution-free.
Application: High speed rail/urban rail transit/bus and coach system (insulation, heat insulation, noise reduction)
2. Parameters
|
Technical data |
|
| Flame retardant properties |
▶ Meet the requirements of FMVSS 302 and DIN 75 200 ▶ ISO 3795, Burning speed ≤ 100mm/min ▶ EN45545-2 2016， Meet the requirements of R1 and HL3 (>20mm) |
| Thermal conductivity/EN 12667 | ≤0.036W（M.K）AT 10 |
|
Heat resistance |
-50℃ TO + 100℃ / -50℃ TO + 150℃（Not considering potential size changes） |
| Oxygen Index |
≥32%
|
| Density/DINEN 29073-1 |
8-24KG/M3±20% |
|
Specification and size |
||
| Product | Size/thickness（mm） | Package |
| ICET CF-40 | 1000 * 1000 * 40 | sheet |

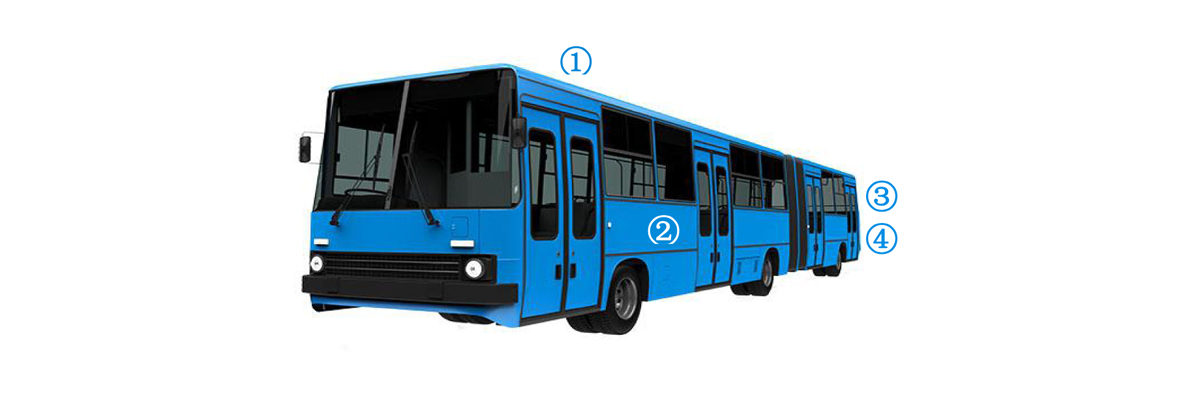

3. Applications

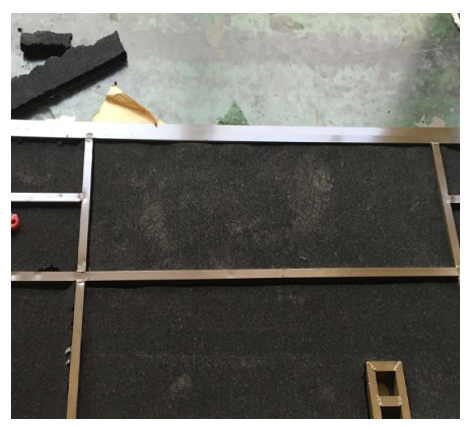

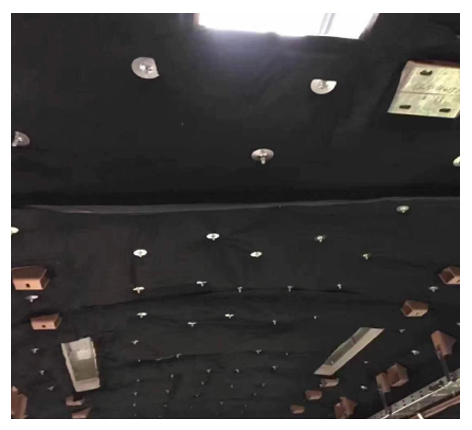

1. Headliner

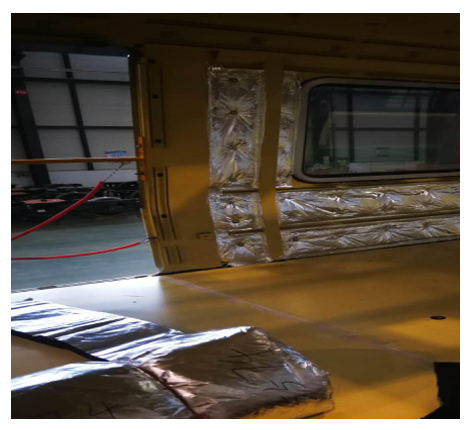

2. Side Panels

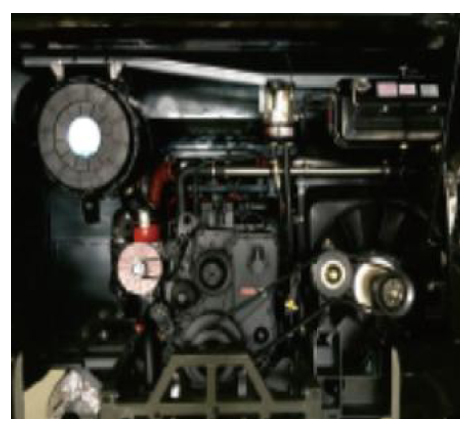

3. Engine Compartment
4. Cabin Door
Insulated aluminum foil/high-quality flame-retardant backing adhesive
Insulated aluminum foil/high-quality flame-retardant backing adhesive
High density sound insulation pad/fiberglass material/adhesive backing
High density sound insulation pad/fiberglass cloth/adhesive backing
