ICET ® A900PET Soundproof Sponge
Product Details
The ICET A900PET product is made of a polyester fiber non-woven material as the substrate, which can be coated with anti-corrosion acoustic aluminum foil at the same time. The back has a high viscosity water-based environmentally friendly adhesive, mainly used for sound absorption, noise reduction, and thermal insulation; the upgraded product is oil and water repellent, and can meet the highest requirements of various flame retardant tests and environmental protection requirementsProduct Characteristics
|
Model |
ICET® |
|
Application Section |
embedded into frame structures/rear cabin door/side panel |
|
Description |
• The sound-absorbing material substrate is made of organic rubber material, which is green and environmentally friendly • The material does not collapse and its acoustic performance is stable • Stable performance temperature: -20 to+80 ℃; • Tensile strength: 60-90Kpa (ISO1798) • Pass the test for VOC and formaldehyde content • The oxygen index of the material is greater than 35% • The material has passed the UL94-2014 test in the United States and meets the V0 level test • Pass the FMVSS302 testing standard • Certified according to the German standard VDA270 for automotive odor testing, with room temperature at Level 2 and 80 ℃ at Level 3; • available with high-quality adhesive technology for easy installation • pass the test for antifungal properties • pass temperature and heat resistance tests in the automotive industry |
|
Flame retardant properties |
• A0 level GB 8410-2006 • JT/T 1095-2016 • European Bus ECE R118 • GB 38262-2019 |
|
Specifications
|
1000*1000*15mm 1000*1000*25mm 1000*1000*30mm |

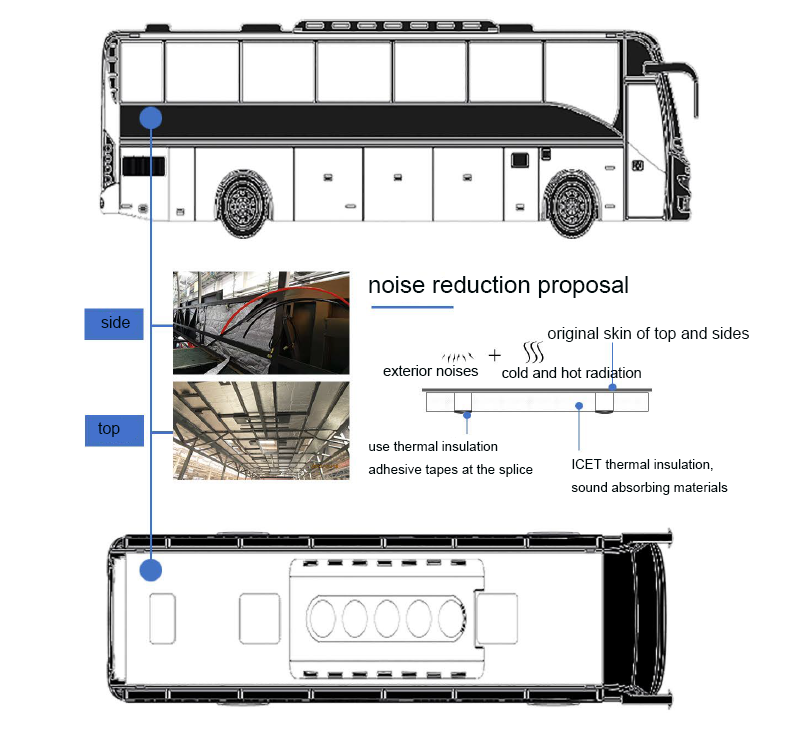

Application for bus: composite materials for body side panels/headliner/engine compartment
Use materials of different thicknesses according to the depth of the body side panels and top frame; To meet the construction requirements, a layer of heat-resistant and flame-retardant adhesive is usually applied on the back of the material
Flame retardant white backing adhesive
To achieve better sound insulation and thermal insulation effects, choose the aluminum foil backing style

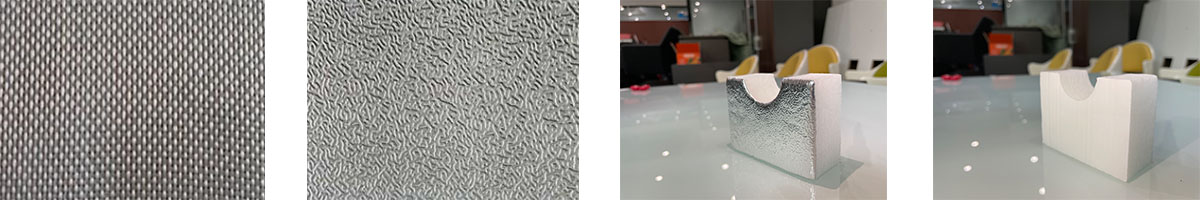

Backing option: embossed orange peel pattern backing, grid rib backing
Optional materials: aluminum foil, fiberglass material, insulation film, adhesive backing
Optional materials: aluminum foil, fiberglass material, insulation film, adhesive backing
For the side panels and headliner of the vehicle body
ICET mainly focuses on lightweight, heat insulation, sound absorption and noise reduction
Optional insulation and noise reduction products: A900PET series, ICET HR290 series, ICET CR series
